Ground Mount Solar Mounting System — Hot-Dip Galvanized Steel Racking

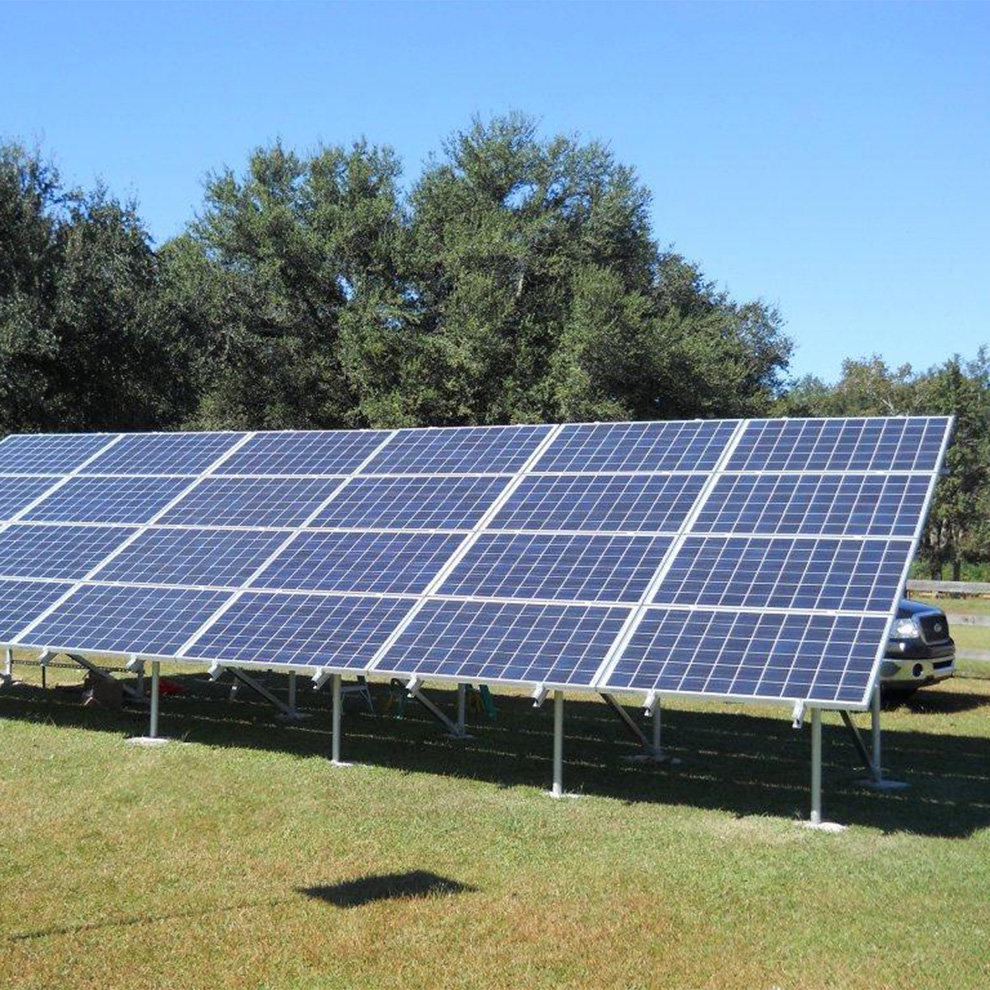

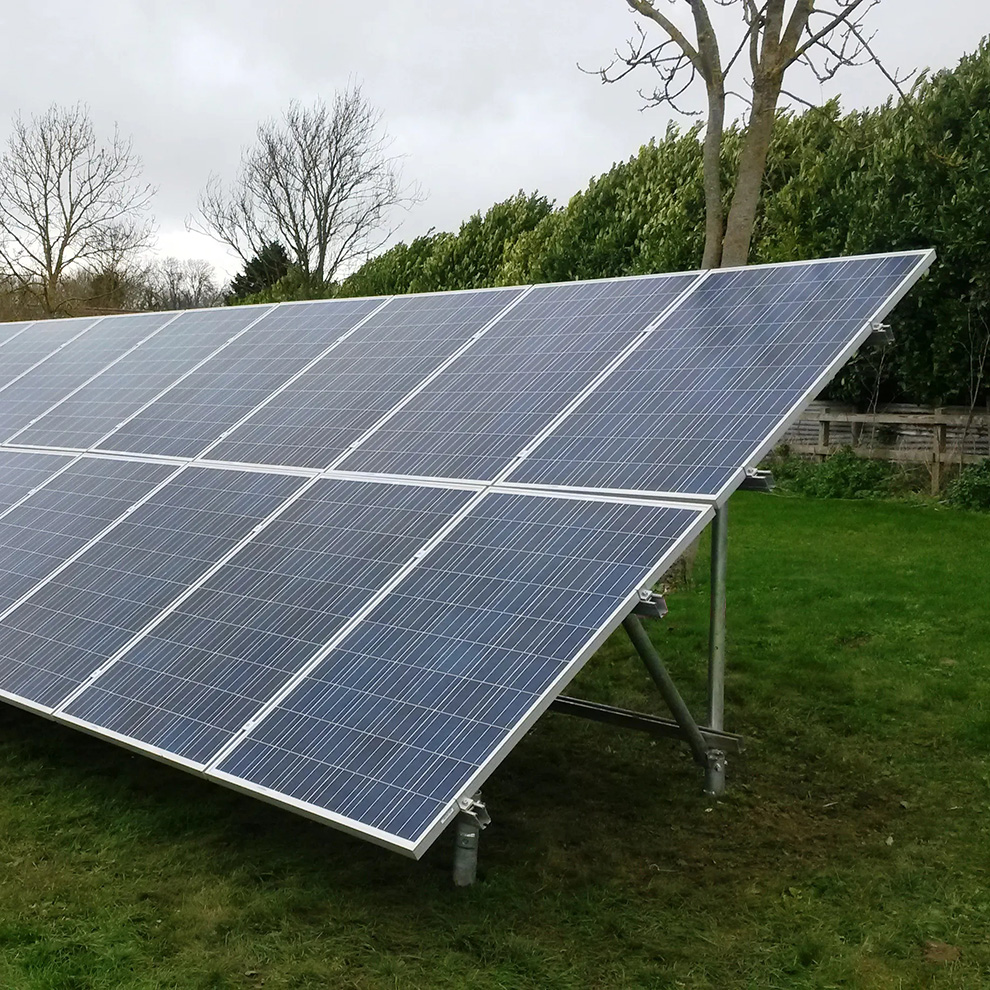

SOLANOVA’s ground mount solar racking system is a complete, hot-dip galvanized steel structure built for open-field solar installations across Nigeria and West Africa — from commercial ground arrays and mini-grid power plants to farm and industrial sites.

Ground Mount Solar Mounting System

Designed to carry standard framed modules including 182/210 mm large-format panels, it delivers the strength and 15-year-plus service life that utility and C&I projects demand, at a competitive cost per watt.

Key features

Heavy-duty galvanized steel: main structure in Q235B/Q355B steel , hot-dip galvanized (≥80 µm ) for long-term resistance to rust and coastal corrosion.
Wide tilt range: fixed tilt from 10° to 30° (up to 35° on request) , optimized for Nigeria's latitude to maximize annual yield while managing wind load.
Proven foundation options: install on cast-in-place concrete piers, driven piles or screw piles depending on soil conditions .
Compatible with all framed modules: accepts 60/66/72/78-cell and 182/210 mm large-format panels, landscape or portrait layout.
Corrosion-proof fasteners: all bolts and nuts are SUS304 stainless steel .
Wind-load checked: structure designed for local wind zones with gust design speed of approx. 42–45 m/s — critical for storm-prone and coastal areas.
Easy assembly: pre-drilled, numbered parts with standard tools; low-skilled crews can assemble quickly with our on-site guidance.
Minimal site work: foundations and structure sized to reduce concrete and earthwork, cutting total installed cost.

Typical applications

Commercial & industrial (C&I) ground-mounted solar plants (self-consumption / diesel-hybrid)
Mini-grid and rural electrification solar farms
Utility-scale (MW) ground arrays
Agricultural / agri-PV fields and irrigation solar sites
Backup power farms for factories, farms, estates and institutions

Technical specifications

Parameter	Specification
Structure material	Hot-dip galvanized steel Q235B
Coating	Hot-dip galvanizing ≥ 80 µm (ISO 1461)
Tilt angle	10°–30° fixed (custom up to 35°)
Foundation	Concrete pier / driven pile / screw pile
Module compatibility	Framed modules; 60/66/72/78-cell; 182/210 mm formats
Module layout	Landscape or portrait
Fasteners	SUS304 stainless steel
Design wind speed	~42–45 m/s gust (per project wind zone)
Design standard	Structural loads per GB 50009 / ASCE 7
Rail material	Aluminium 6005-T5, anodized
Warranty	To be confirmed

Project support included

Free structural sizing for your site and module layout
BOQ and full kit list — rails, clamps, foundation steel, fasteners
Installation drawings and on-site training
Supply nationwide in Nigeria and export to ECOWAS markets

Ordering & quotation Structures are supplied per project as complete kits. Send us your land size, module type and quantity for a same-week quotation [CONFIRM response time]. Call 24/7: +234 815 656 9703.
